THE PLATFORM

THE AIRCRAFT

TWO VARIANTS. ONE PLATFORM. UNLIMITED REACH.

Engineered to cover the full spectrum of operational requirements — from tactical law enforcement to high-altitude strategic military missions.

Piston-variant Aeolus UAS flying over desert dunes TACTICAL OPERATIONS

Piston Variant — Rotax Engine

  • Service Ceiling21,000 ft / 6,401 m
  • Dash Speed162 mph / 260 km/h
  • Cruise Speed115 mph / 185 km/h
  • Max Endurance17+ hrs @ 170 kg payload
  • Fuel95LL / 98LL Octane · 110LL Avgas

Best For: Border patrol · Law enforcement · Coastal surveillance · Tactical ISR

Markets: Law enforcement agencies, border forces, civil government

Turbine-variant Aeolus UAS flying over a glacier at high altitude STRATEGIC OPERATIONS

Turbine Variant — Honeywell Engine

  • Service Ceiling39,000 ft / 11,887 m
  • Dash Speed175 mph / 282 km/h
  • Cruise Speed115 mph / 185 km/h
  • Max Endurance17+ hrs @ 170 kg payload
  • FuelJet-A / Jet-A1 / JP-8

Best For: Strategic ISR · High-altitude military ops · HALE-class missions

Markets: Military forces, intelligence agencies, strategic government clients

Shared airframe, GCS, payload system, and training program dramatically reduce logistics complexity for mixed-fleet operators.

PERFORMANCE SPECIFICATIONS

ParameterPiston — RotaxTurbine — Honeywell
EngineRotax piston engineHoneywell aerospace turbine
Service Ceiling21,000 ft / 6,401 m39,000 ft / 11,887 m
MTOW850–1,000 kg850–1,000 kg
Empty Weight187 kg187 kg
Rotor Span8.52 m / 27.95 ft8.52 m / 27.95 ft
Dash Speed260 km/h / 162 mph282 km/h / 175 mph
Cruise Speed185 km/h / 115 mph185 km/h / 115 mph
Max Endurance17+ hrs @ 170 kg payload17+ hrs @ 170 kg payload
NavigationINS · GPS · GLONASS · GALILEO · BAIDUINS · GPS · GLONASS · GALILEO · BAIDU
Fuel95LL / 98LL · 110LL AvgasJet-A / Jet-A1 / JP-8
Length: 4.82 mHeight: 2.10 mWidth: 1.89 mRotor Span: 8.52 m

A FULLY INTEGRATED SYSTEM

01

Unmanned Aircraft

Two rotary-wing UAVs per system, capable of independent simultaneous operation.

02

Ground Control Station

Centralized command, data storage, and multi-operator console with fully autonomous power supply.

03

Communication Channel

Encrypted real-time data exchange between UAV and GCS via mobile network or satellite — full worldwide coverage.

04

Modular Payload Bays

Interchangeable payload modules supporting thermal imaging, optical, laser, and mission-specific equipment.

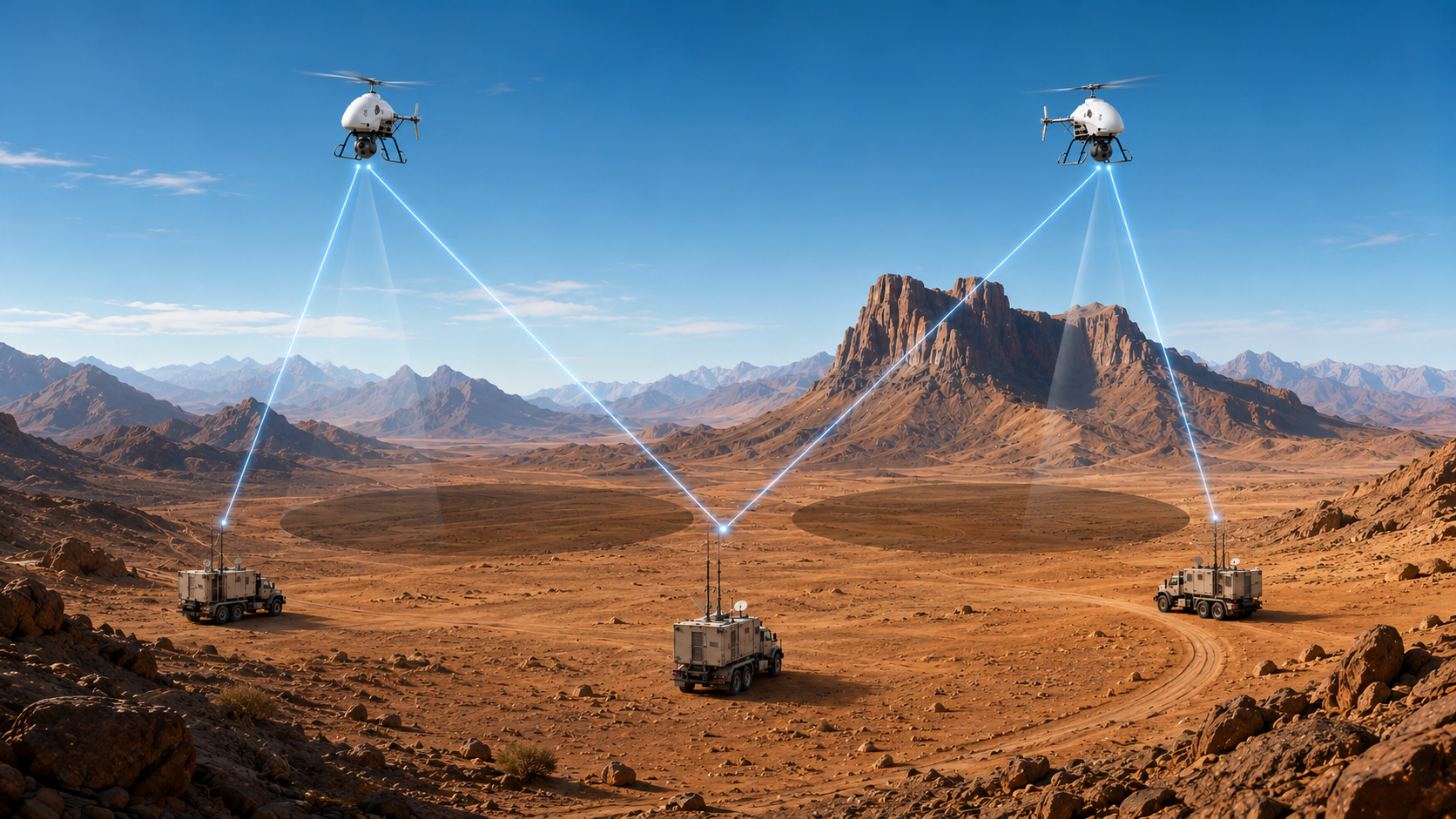

Two Aeolus UAVs relaying encrypted data links to ground stations across the field
